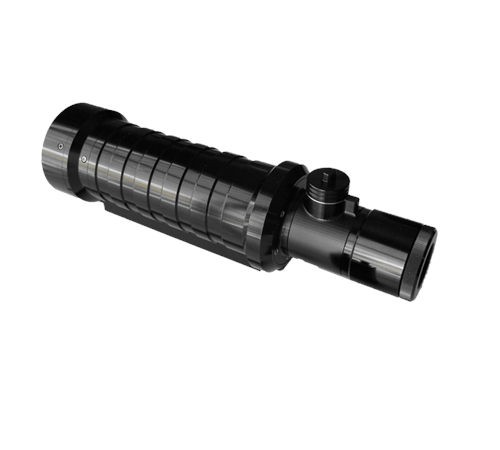

Colorimetry Research CR-300

Product code: CR-300

15,445.00 € excl. VAT

15445.0 EUR
 Add to cart

Colorimetry Research CR-300 2 nm spectral bandwidth spectroradiometer with viewing optics port. Includes carrying case.

Availability: Special order item, usually ships 3-4 weeks after receipt of order

The Colorimetry Research CR-300 is a high resolution spectroradiometer featuring 2nm spectral bandwidth and 0.8nm/pixel resolution. This probe is highly accurate and display agnostic allowing it to be used with all current and future display technologies including LCD, OLED, and projection.

The CR-300 is compact and lightweight (just 2.5 lb / 1.134 kg) yet extremely durable thanks to its all metal machined aluminum and stainless steel construction. Every CR-300 is shipped with a NIST traceable calibration certificate verifying the instrument's accuracy.

Screw-on rubber hood adapter is included for contact measurements. Measurement spot diameter on contact measurements is 8 mm for a unit that has a 2 degree aperture and 14 mm for a unit that has a 1 degree aperture.

The CR-300 comes with CRI's own CRI application allowing for basic measurement, logging, and manual calibration of displays. The CR-300 is also compatible with LightIllusion's LightSpace CMS, sold separately, allowing for in-depth 3D LUT based calibration of all current Flanders Scientific monitors.

Visit the Colorimetry Research web site for more information on CR-300 features and the CRI Application.

Specifications

Detector
CMOS image sensor, 512 pixels
Spectral Range
380 - 780 nm
Spectral Bandwidth
2 nm
Spectral Accuracy
+- 0.3 nm
Spectral Resolution
0.8 nm / pixel
Luminance Range
0.05 fL to 45,000 fL
Luminance Repeatability
≤ 1 %
Chromaticity Accuracy
+- 0.0015 x,y
Chromaticity Repeatability
0.0005 x,y
Polarization Error
≤ 0.5%
Digital Resolution
16 bits
Optics
Direct viewing and direct measuring system
Objective Lens
40 mm
Focusing Range
200 mm to infinity
Aperture
Fix (available at order time: 3°, 2°, 1°, 0.5°, 0.25°, 0.125°)
Field of View
10°
Viewing optics
Patent pending removable and rotatable viewing system.
Custom Synchronization
10 - 10,000 Hz
Exposure Time Range
0.04 to 30 seconds
Power Requirements
5V, 120 mA, (600mW) via USB 2.0
Interface
USB 2.0
Weight
1.14 kg

FSI products come with a standard 2 year warranty parts and labor.

All quoted shipping rates include shipping insurance

See our terms and conditions for details on our return policy

Orders outside the EU are subject to local import duties and taxes
