21.5". 3G/Dual-Link/HD/SD-SDI, analog and DVI-I inputs. Dual input display and CFE2 with DIT LUT import. Normal price 2755 EUR/2315 GBP
Availability: -

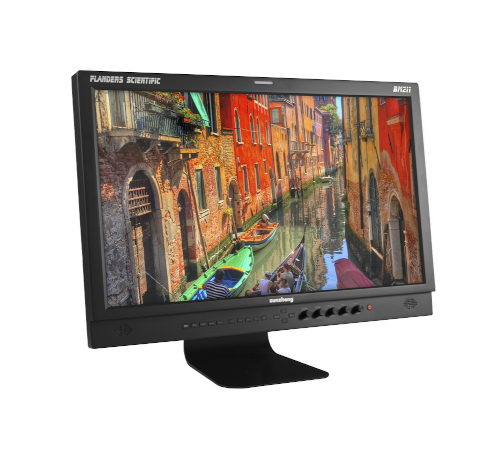

The BM211 is a lightweight and power-efficient 21.5” broadcast monitor with an extended feature set geared towards production, editorial, and broadcast environments. This Multi-Format broadcast monitor comes with 3G/Dual-Link/HD/SD-SDI, Component, Composite, & DVI-I Inputs. Like all BM series monitors this unit features full 12-bit video processing and a native 1920x1080 resolution 8-bit panel capable of reproducing over 16.7 million colors on screen. The BM211 offers support for virtually any signal format from NTSC/PAL to HD and 2K, including advanced 12-bit, 4:4:4, and XYZ signal formats.
Visit FlandersScientific.com
for more in-depth information.
Features
Full HD Resolution
(1920 x 1080)
12-bit Video Processing
8-bit LCD (16.7 Million Colors)
Low Power Consumption (28 watts)
Lightweight (4.1 kg)
3Gbps SDI & Dual-Link Standard
Support of Advanced SMPTE 425M-AB Signal Formats
4:4:4 YCbCr, RGB, & XYZ Signal Support
Timecode Display (VITC1, VITC2, & LTC)
On-screen Indication of Source Frame Rate and Resolution (toggle on, off, or 5 second display)
DSLR Zoom for Full Screen Scaling of DSLR Sources
On-screen Alarms (IRE Threshold, RGB Alarms, Loss of Signal, Audio Mute, and More)
Adjustable Focus Assist (Focus Meter and Focus Highlight in Red)
Wide Variety of Standard Markers and Safety Areas
Custom Markers and User Adjustable Graticules
Pixel Zoom Features for Artifact-Free Zoom on Any Portion of HD Signal
Active Video Boundary Marker
H/V Delay
CX Scale for Full Screen & Centered Scaling of Codex ARRIRAW Recorder Output
Monochrome Mode
Blue Only, Red Only, & Green Only Modes (As Color or Mono)
HD Anamorphic De-Squeeze (1.3x, 1.3x Mag, 2.0x, 2.0x Mag)
AFD Reader
SD Aspect Ratio Selection Including PAL SD FHA, Anamorphic, & 4:3
2 Input Picture & Picture Display with Adjustable Horizontal or Vertical Wipe Position
Overscan & 1:1 Scan
Luminance Waveform with Adjustable Intensity
Vectorscope with Adjustable Intensity and Gain Expansion
Hue Vector with Adjustable Reference Vector Line
Color Code RGB and GBR Parade Scopes
RGB Overlay with Adjustable Intensity
Column (YRGB) Scope
Histogram, Color Histogram, & RGB Histograms
YCbCr Scope with Adjustable Intensity
YCbCr Overlay Scope with Adjustable Intensity
Audio Phase Meter (Select Any Stereo Pair)
16 Channel Audio Level Meters (PPM1, PPM2, True Peak)
16 Channel Audio Loudness Meter
Audio Disembedding to Built In Speakers or Audio Output (Synced to Video Display)
Advanced 3D LUT Based Calibration (compatible with LightSpace, CalMAN, and Fuji)
Selectable Color Temperature Presets
Adjustable Gamma selection (1.0~2.8)
C-Log, S-Log, S-Log2, S-Log3, and BMD Film Log Monitor Modes
Store up to 16 instantly selectable 3D DIT (Look) LUTs
Advanced Pixel Level Measurement Feature
3D Signal Analysis Modes Including 3D Disparity and Checkerboard
CIE Scope
CIE Measurement Tool
Visit www.FlandersScientific.com for more information on BM211 features.
Panel Specifications

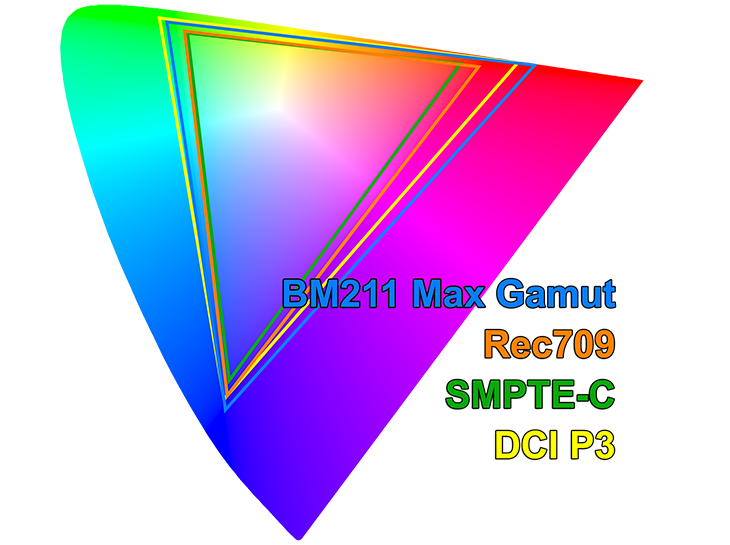

Maximum Native Color Gamut
Inputs
Outputs
Supported SDI Formats
1080p (30/29.97/25/24/24PsF/23.98/23.98PsF)
(30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/
23.98PsF)
23.98PsF)
*XYZ mapped to Selected Color Gamut on Display Alignment Menu
Supported DVI Formats
Audio
Features
Power
Physical Characteristics
FSI monitors come with a standard 2 year warranty parts and labor.
